OSG Spiral Flute Tap: M12x1.75 Metric, 3 Flutes, Semi-Bottoming, 6H Class of Fit, Powdered Metal, TICN Coated 14 mm Thread Length, 180 mm OAL, Right Hand Thread, D6, Series 16520 1652006708 – 49206188
Original price was: $112.50.$24.55Current price is: $24.55.
Description
OSG Spiral Flute Tap: M12x1.75 Metric, 3 Flutes, Semi-Bottoming, 6H Class of Fit, Powdered Metal, TICN Coated 14 mm Thread Length, 180 mm OAL, Right Hand Thread, D6, Series 16520
Manufacturer Part #: 1652006708
S/N: 49206188
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M12x1.75 |
| Thread Standard | M |
| Chamfer | Modified Bottoming |
| Material | Powdered Metal |
| Thread Limit | D6 |
| Class Of Fit | 6H |
| Coating/Finish | V |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Alloy Steel, Aluminum, Cast Aluminum, Cast Iron, Hardened Steel, High-Carbon Steel, Low-Carbon Steel, Medium-Carbon Steel, Stainless Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Oversize | No |
| Threads per Inch | 0 |
| Thread Length (mm) | 14 |
| Overall Length (mm) | 18 |
| Shank Diameter (mm) | 9.3218 |
| Neck Length (mm) | 72 |
| Tapping Depth (mm) | 72.00 |
| Square Length (mm) | 11.1125 |
| Square Length (Decimal Inch) | 0 |
| Square Size (Decimal Inch) | 0 |
| Square Size (mm) | 6.985 |
| Flute Style | Spiral |
| Series | 16520 |
| Helix Angle Range | 15 to 45 |
Related products
-
Kennametal CNMG431RP KCM25B Carbide Turning Insert TiOCN Finish, Neutral, 12.9mm Long, 1/2″ Inscribed Circle, 1/64″ Corner Radius, 80° Diamond, Series KENLOC 5591950 – 61272506
Original price was: $25.27.$6.52Current price is: $6.52. -

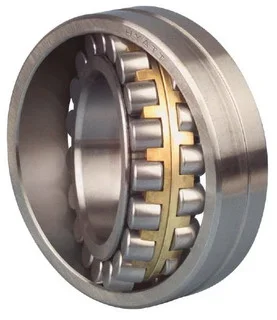

Value Collection 1.7717″ Bore Diam, 16,900 Lbs. Dynamic Capacity, Straight Spherical Roller Bearing 3.3465″ Outside Diam, 19,600 Lbs. Static Capacity, 0.9055″ Thick 22209CAC3W33 – 01728344
