Kennametal 3.6mm 140° Solid Carbide Jobber Drill Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 66mm OAL, Standard Point 4149186 – 76293240
Original price was: $93.00.$22.39Current price is: $22.39.
Description
Kennametal 3.6mm 140° Solid Carbide Jobber Drill Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 66mm OAL, Standard Point
Manufacturer Part #: 4149186
S/N: 76293240
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 3.60 |
| Drill Bit Size (Decimal Inch) | 0.1417 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Specification Number | DIN 6537K |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Spiral Type | Regular |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.9055 |
| Maximum Drilling Depth (mm) | 23.00 |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.59 |
| Drill Point Length (Decimal Inch) | 0.0231 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Drill Bit Size Range (Decimal Inch) | 0.1000 – 0.1500 |
| Drill Bit Size Range (mm) | 3.00 – 4.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
Related products
-

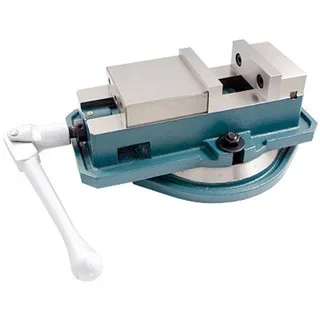

Precise 3″ Ultra Series Angle Tight Positive Lock Milling Vise with Swivel Base – 3900-2203
Original price was: $288.88.$55.51Current price is: $55.51. -

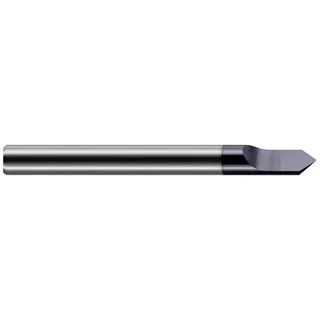

Harvey Tool 90° 1/8″ Diam 1-1/2″ OAL Pointed Engraving Cutters AlTiN Finish, 1/16″ LOC, 1 Flute, Solid Carbide 30110-C3 – 77417608
Original price was: $28.71.$7.70Current price is: $7.70. -

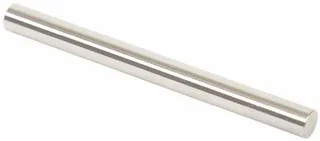

Vermont Gage Class ZZ Minus Plug & Pin Gage: 4.47 mm Dia 0.0050mm Tolerance 112404470 – 40431926
